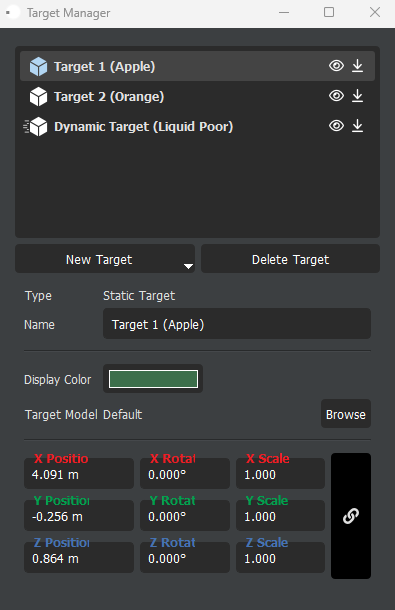

Target Manager
The Target Manager widget is where you add new targets to your workspace such as static, dynamic (targets that move on the timeline) and also turntable targets. are captured, edited, and labeled. All targets can be called with names, edited, labeled and also assigned 3D files to better visualize them in the scene.
Target Variable | Functions |
|---|---|
Name | Edit the target name description. |
Display Color | Select a desired color for your target using the provided color palette. |
Position | Edit the coordinate positions of the target in the world frame. |
Browse | Load and assign a 3D STL file to the target. |
Scale | Scale the target model in the x, y or z directions. |
Transform | Translate or rotate the target with respect to the x, y or z directions. |
Hide Target | Click on the eye icon next to the target to hide / unhide it. |
Suppress Target | Click on the ⭳ icon next to the target to suppress / depress it. |
Average Targets Position | Press Ctrl and select multiple targets from the targets list. Right click and select Average. |
Target Types
There are three different types of targets that are added using the Target Manager widget in Lensmaster.
