Selecting the Tilta Nucleus-M in Lensmaster

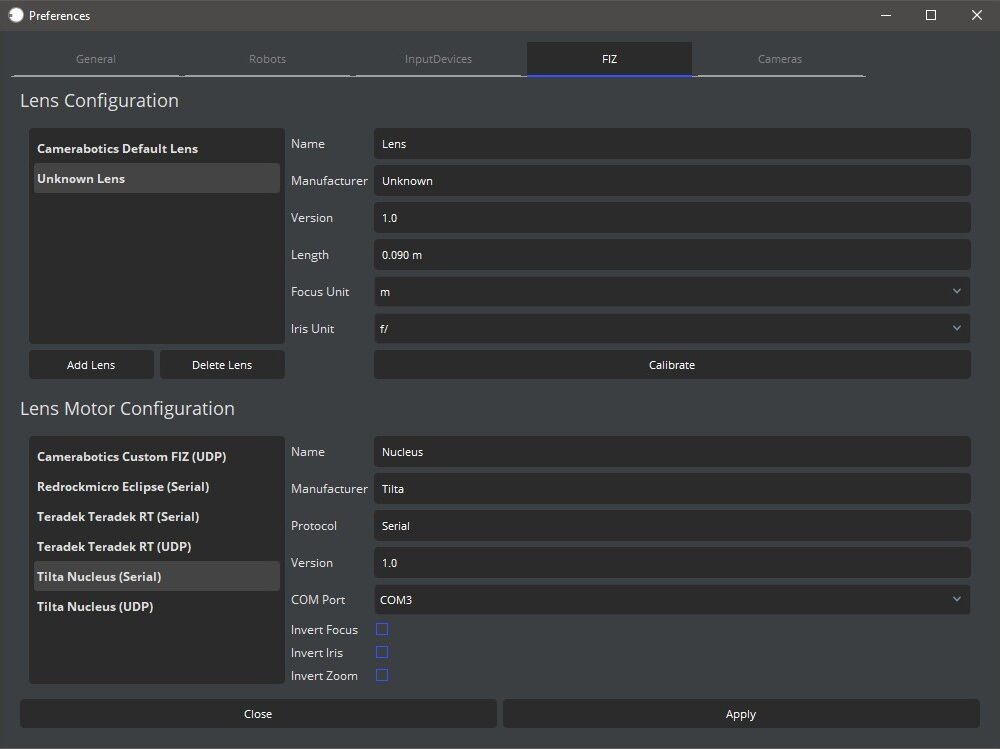

In Lensmaster navigate to preference and then FIZ

Under Lens Motor Configuration select “Tilta Nucleus (Serial)” from the supported FIZ system list.

Select the COM port used by your FIZ box. This can be found by looking for a device called “USB Serial Port (COM#)” under “Ports (COM and LPT)” in Windows Device Manager.

Hit apply to save your settings.

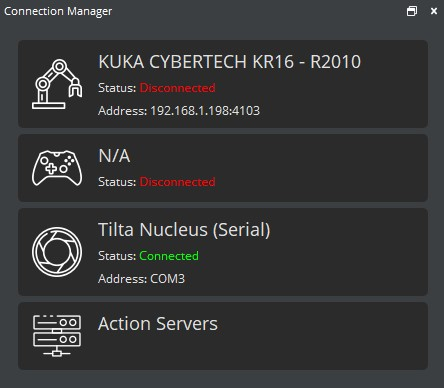

Go to the Connection Manager in Lensmaster.

Right Click on “Tilta Nucleus (Serial)” and hit connect to establish a conection to the FIZ motors.

You should now be able to control your Tilta Nucleus-M motors from Lensmaster.
