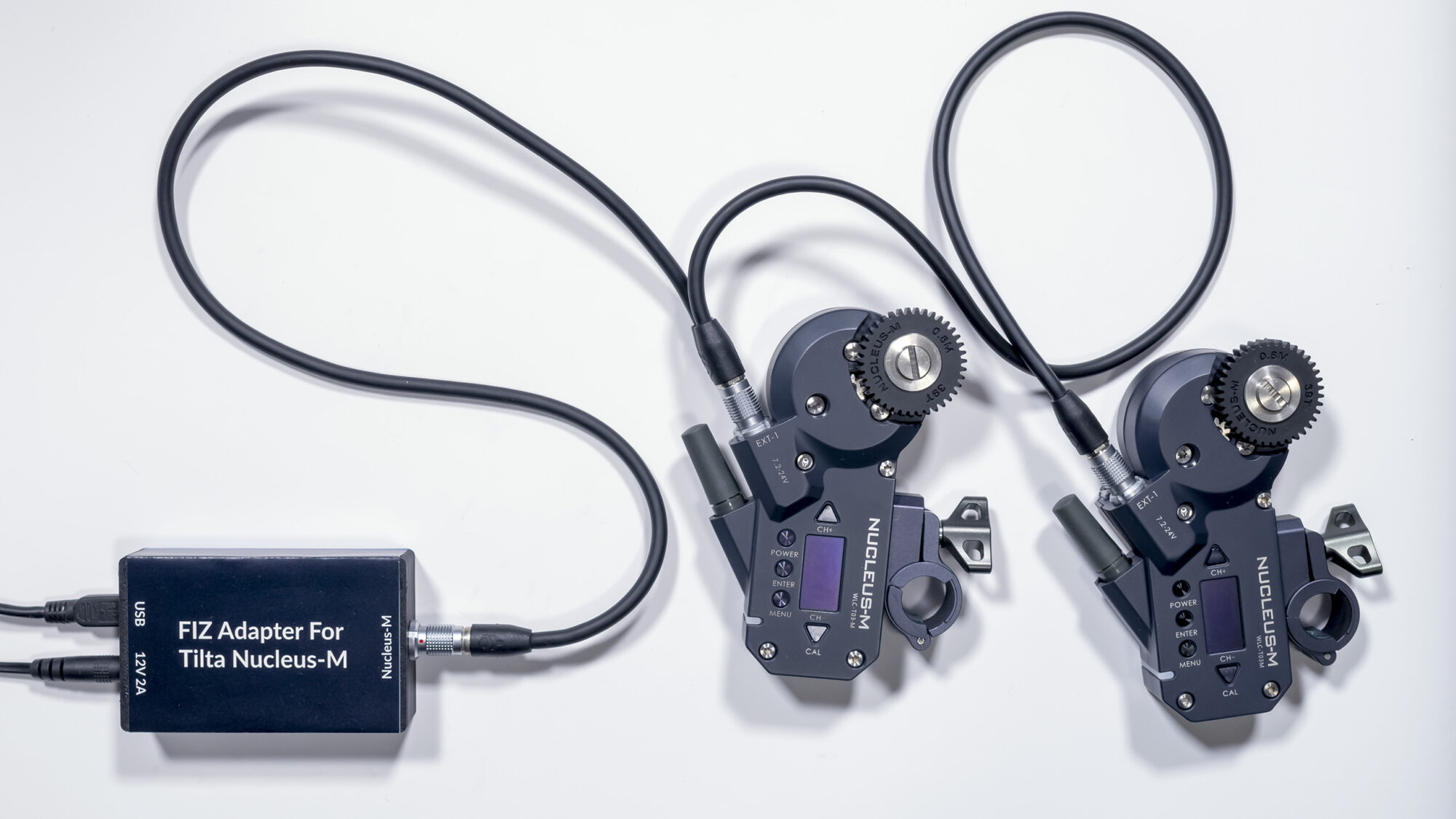

Connection Diagram

Connecting your FIZ box to Lensmaster

1. Run a USB cable from the FIZ box to the PC running Lensmater.

2. Connect a 12 V 2A power supply to the barrel plug power input on the FIZ box.

3. Connect the Tilta Nucleus-M motor to the 7-Pin LEMO Socket on the FIZ adapter box.
