Digital Output Control
The Digital Output Control allows you to utilize and control the digital outputs of the Camerabotics Action Server in your animation.
Overview of Digital Output Control
The digital output control has several properties.
To access these properties:
Open the trigger properties menu by clicking on the trigger you want to modify.
Click on the Digital Output Action.

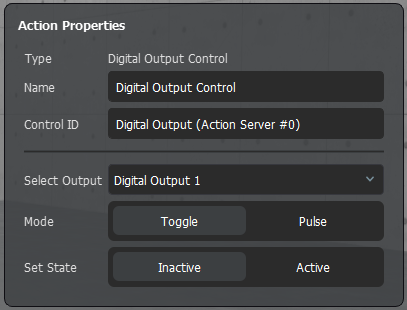

Digital Output Control Properties
Name: An optional field where you can assign a name to the control action for easier identification.
Control ID: A unique identifier for the action, usually in the form of "Action ID (Device ID)".
Select Output: A dropdown menu where you can choose which Action Server Digital Output you want to use for this action.
Mode: The digital output can be set to either Toggle or Pulse mode:
Toggle Mode: Sets the digital output to either Inactive (off) or Active (on). The state can be selected using the Set State property.
Pulse Mode: Activates the digital output for a specific duration before turning it off again. The pulse duration can be adjusted with the Pulse Duration (ms) property, with a maximum duration of 500ms.
