Animation Timeline

The Lensmaster Timeline provide a simplified visual representation of the sequence motion over time for the Robot, FIZ, track, and all external axes and stepper motors connected to Lensmaster including those connected via the Camerabotics Action Server.

Keyframes marked on the graph denote specific positions and movements, with bezier easing curves to fine-tune the motion's fluidity and speed.

The Lensmaster Timeline interface is essential for animators and visual engineers alike, offering a simple and no-code approach to design complex and articulated motion control sequences involving robot arms, FIZ systems, turntables, lights and so much more.

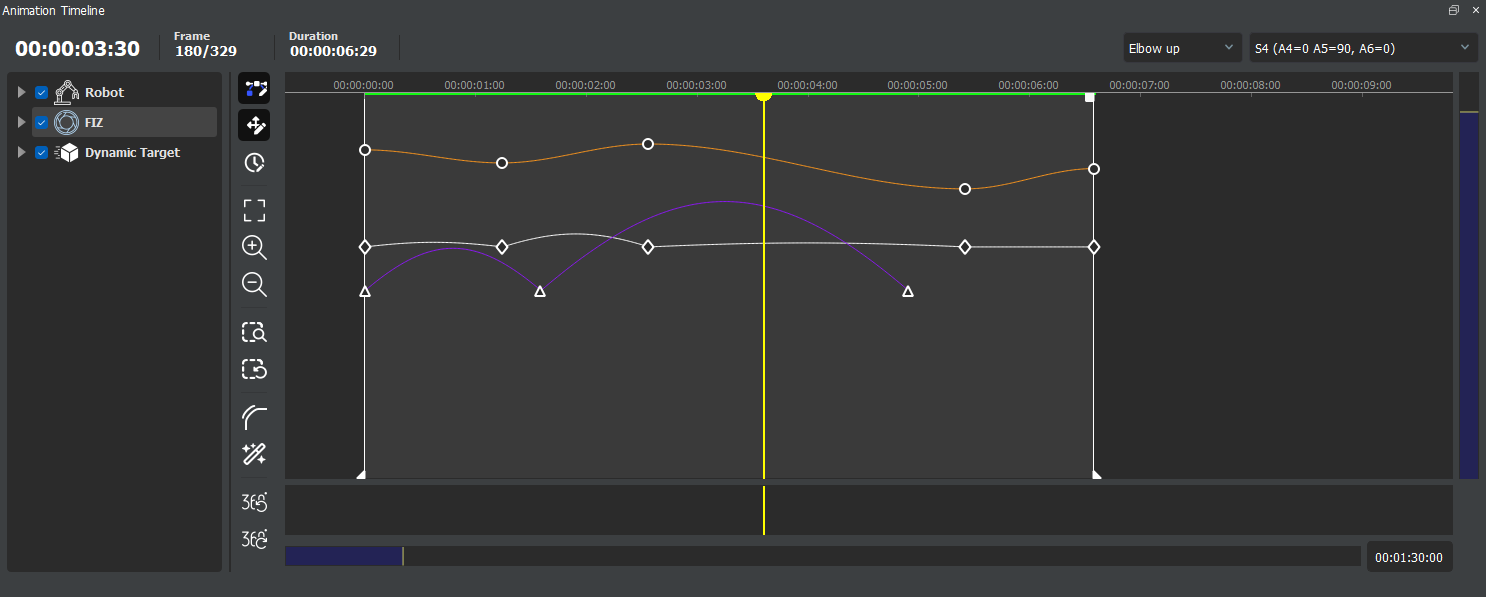

Simplified Timeline

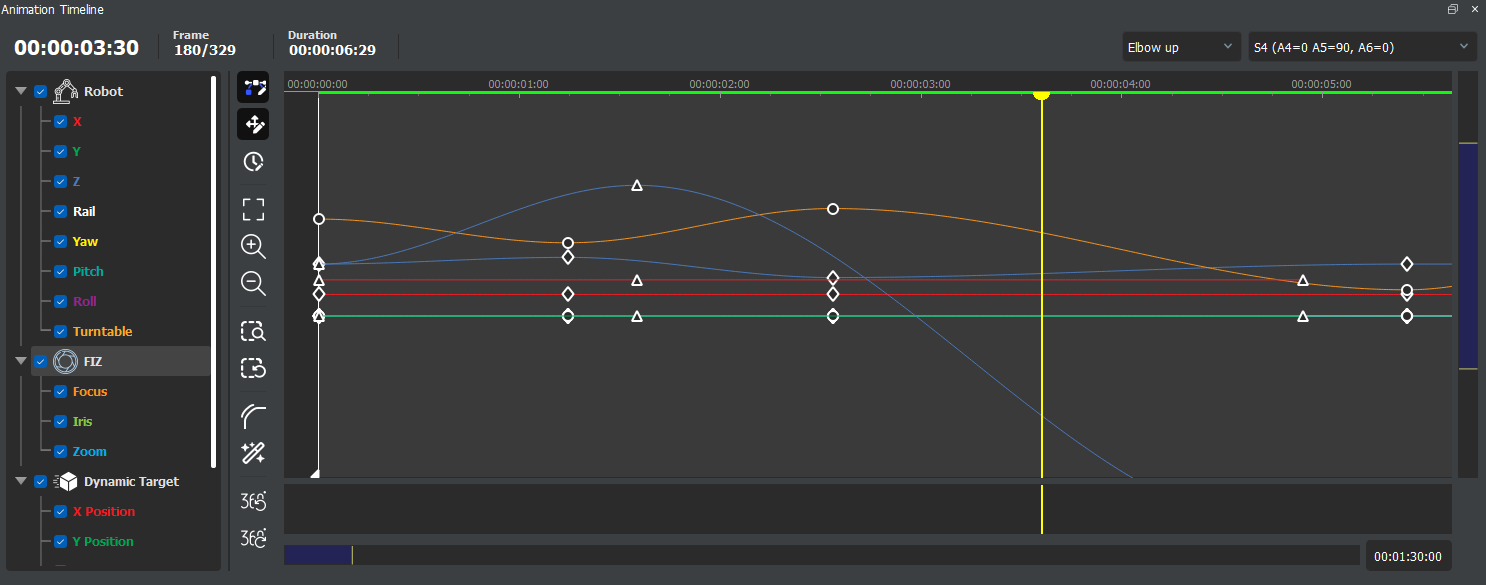

Expanded Timeline

You can expand animations in the Timeline to display their individual axes, such as the x, y, and z positions of the end effector.

To do this, expand the desired animation in The Animations List.
