Stepper Motor Properties

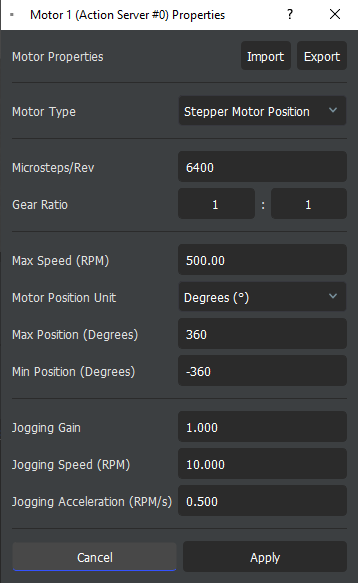

In the Stepper Motor Properties pane, you can change the motor control type from Stepper Motor Position, Stepper Motor Velocity and RC Servo Position.

The options available for Stepper Motor Control:

Microsteps/rev

Enter number of pulses per one motor revolution or PPM.

Gear Ratio

Specify the gear ratio of the gearbox or pulley system connected to the motor.

Motor Position Unit

You can control the motor in degrees of the output shaft, or in percentage of the max position range.

Max Position (Degrees)

Specify the maximum range of the output shaft in degrees.

Jogging Gain

Specify the motor gain used when jogging the motor.

Shoot Gain

Specify the motor gain for timeline movement. Increase / tune value if motor appears to lag behind the animation in timeline movement.

Max Position (Degrees)

Set the upper limit of your motor range in degrees.

Min Position (Degrees)

Set the lower limit of your motor range in degrees.
